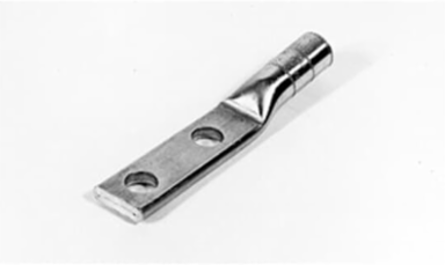

Blackburn AL 1500 N Aluminum Compression Lug 1500 kcmil, 2 Hole NEMA Pad, 10-7/8 Inch Long
Blackburn AL 1500 N Aluminum Compression Lug 1500 kcmil, 2 Hole NEMA Pad, 10-7/8 Inch Long
- MPN: AL 1500 N
- UPC: 783786318162
- PPN: T-B-AL 1500 N
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$156.48/ EA
Description
Aluminum Compression Lug, 1500-1510.5 kcmil Aluminum and Copper or 1341.5 54/19 ACSR, Bolt Hole 9/16 inch Diameter, Two Hole NEMA Pad. Contains Oxide Inhibitor. Yellow Cap. 10-7/8 inch Long. Pad 3 inch wide x 3-5/8 inch long x 3/4 inch Thick. Barrel 5-1/2 inch long. O.D. 2-1/4 inch Diameter. Dies 189, 478.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20110928
Product NameELECTRICAL CONNECTOR,>1000V
Special FunctionsDual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
Wire Size1500 kcmil
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
