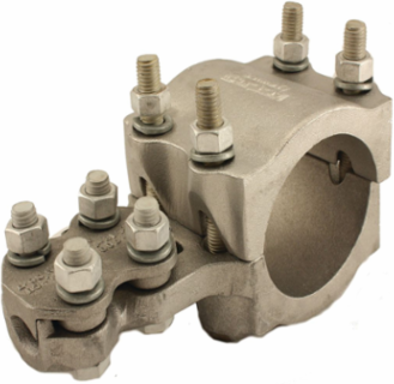

Al Bolted T-Connector, Coductor Al or CU Range: 900-1250 Kcmil (Run and Tap), ACSR Conductor Range: 715.5-1113 Kcmil (Run and Tap)

Burndy NNTR45A45A Al Bolted T-Connector, Coductor Al or CU Range: 900-1250 Kcmil (Run and Tap), ACSR Conductor Range: 715.5-1113 Kcmil (Run and Tap)

MPN: NNTR45A45A
UPC: 781810004197
PPN: BUR-02002138
UNSPSC: 39121456

CAD

$395.78

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Al Bolted T-Connector, Coductor Al or CU Range: 900-1250 Kcmil (Run and Tap), ACSR Conductor Range: 715.5-1113 Kcmil (Run and Tap).

Features

Aluminum alloy T-Connector for tubing run and tap
Properly proportioned to permit use on copper-aluminum conductor combinations
Captured hex head bolts permit one-wrench installation

Specifications

Key Specifications

Country of Origin: United States

Conductor - ACSR Str Run Range: 715.5 (54/7) Crow kcmil-1113 (54/19) Finch kcmil

Conductor - ACSR Str Tap Range: 715.5 (54/7) Crow kcmil-1113 (54/19) Finch kcmil

Conductor - AL Str Run Range: 900 kcmil-1250 kcmil

Conductor - AL Str Tap Range: 900 kcmil-1250 kcmil

Dimension - B Length fraction: 3-3/4 in

Dimension - Height fraction: 3-1/4 in

Dimension - L Length Overall mm: 186 mm

Dimension - Length Overall inch: 7.31 in

Dimension - Width mm: 81 mm

Installation Torque Recommended in-lb: 300 LBS/in

Physical Attribute - Number of Run Conductors: 1

Plated: N

Product Type: Mechanical

Application: Substation

Connector Type: T-Connector

Class Code: B21

Harmonization Code: 8535908020

Lead Time: 12 wk

Sub Class Code: B21B06F

Material: Aluminum Alloy

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 13.160 lb.

Carton - Pack Description: Carton

Carton - Total Units: 4

Package - GTIN - Package: 30781810004198

Package Quantity: 4 EA

Pallet - GTIN - Package: 70781810004196

Pallet Length: 48.000 in

Pallet Width: 40.000 in

NAICS Code: 3359319102

Conductor - ACSR Str Run715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil;1033.5 (45/7) Ortolan kcmil;1033.5 (54/7) Curlew kcmil;1113 (54/19) Finch kcmil

Conductor - ACSR Str Tap715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil;1033.5 (45/7) Ortolan kcmil;1033.5 (54/7) Curlew kcmil;1113 (54/19) Finch kcmil

Conductor - AL Str Run900 kcmil;954 kcmil;1000 kcmil;1033 kcmil;1100 kcmil;1113 kcmil;1192 kcmil;1200 kcmil;1250 kcmil

Conductor - AL Str Tap900 kcmil;954 kcmil;1000 kcmil;1033 kcmil;1100 kcmil;1113 kcmil;1192 kcmil;1200 kcmil;1250 kcmil

Conductor - Connection CombinationCable to Cable

Dimension - B Length inch3.75 in

Dimension - Height inch3.25 in

Dimension - Length BB inch3.75 in

Dimension - Width inch3.19 in

Width3.950 in

One Wrench InstallationY

Physical Attribute - Number of Tap Conductors1

Plating TypeUnplated

Standards - RoHS Compliance StatusCM

TypeBolted Tees

Certification AgencyProposition 65

Freight Class Code16027000

Image Actual Or RepresentativeA

Replaced Catalog NumberNNTR45A45A

UL ListedNo

Material - HardwareAluminum

BOX SIZE12.000x12.000x12.000 (in)

Carton - Number of Sub Packs4

Carton - SCC-14 Next Lower Level Sub Pack00781810004197

Case - SCC-14 Next Lower Level Sub Pack30781810004198

Package - Total Units4 EA

Package Weight0.000 lb.

Pallet Height40.500 in

Pallet Weight518.760 lb.

Standard Package Quantity4

Certifications

CSA Approved: No

ETL: No

cULusNo

UL RecognizedNo
