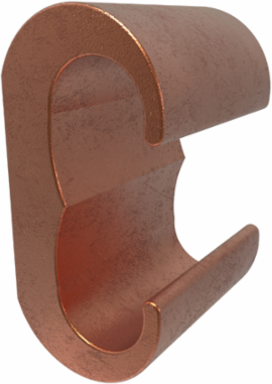

ILSCO ELT-1 Permaground Copper Grounding E Crimp, Main Conductor Range 2-6 Sol, Tap Range 2-6 Sol, UL, CSA
- MPN: ELT-1
- UPC: 783669257304
- PPN: ILC-ELT-1
CAD
$17.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permaground Copper Grounding E Crimp, Main Conductor Range 2-6 Sol, Tap Range 2-6 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.75 in
- Weight
- 0.205 lbs
Length1.17 in
Width0.58 in | 14.732 mm
Dimensions
- Height BX (IN)
- 2
- Width BX (IN)
- 5
Weight BX (LB)10.5
Width (mm)14.732
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed
Additional Class Attributes
- ILSCOs Die Index Number
- ND-C
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 2 Sol - 6 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str - 6 Str
Conductor Range CU Solid (Secondary, tap, load)2 Sol - 6 Sol
Conductor Range CU Stranded (Secondary, tap, load)2 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366925730
Color
- Color
- Copper
