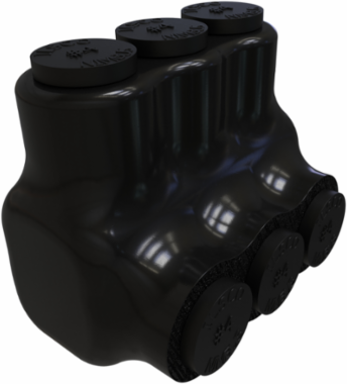

Ilsco PBTS-3-4 Nimbus Insulated Aluminum Multi-Tap Connector, 3 Ports, Conductor Range 4-14, 600V
Ilsco PBTS-3-4 Nimbus Insulated Aluminum Multi-Tap Connector, 3 Ports, Conductor Range 4-14, 600V
- MPN: PBTS-3-4
- UPC: 0783669079005
- PPN: ILC-PBTS-3-4
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$60.60/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 1/8
- Height BX (IN)
- 2.75
- Max Insulation OD (IN)
- 0.317
- Weight BX (LB)
- 1.3241
- Width (mm)
- 31.8516
Drive Type MainInternal Hex
Height (mm)35.0266
Max Insulation OD (mm)8.0518
Width BX (IN)4
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 3
- Number of Ports / Wireways
- 3
- Number of Usable Taps
- 3
Contains DE-OX®Yes
Number of Poles1
Number of Usable Ports3
Replacement Part(s)PLUG-4
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Plastisol
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366907900
Carton Quantity DescriptionSTD PACK QTY 12
NEMA CodeS-588-4
Specifications
- Height
- 1.379 in | 35.0266 mm
- Weight
- 0.099 lbs
Length1.626 in
Width1.254 in | 31.8516 mm
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 10 - 18 AWG = 20, 8 AWG = 25, 4 - 6 AWG = 35, 2 AWG = 40
Wire Binding Screw Size1/4
Color
- Cap Color Main
- Black
- Color
- Black
Cap Color TapBlack
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Temperature Rating
- 90°C
Flammability RatingInsulation rated per UL 94
