Ilsco

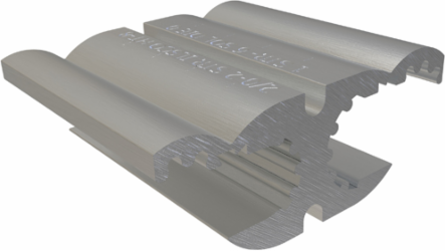

Ilsco HT-8 Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 2/0 Str - 2 Str and 3/0 Sol - 1 Sol, Tap Range 1/0 Sol - 6 Sol and 1 Str - 6 Str, CSA

Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 2/0 Str - 2 Str and 3/0 Sol - 1 Sol, Tap Range 1/0 Sol - 6 Sol and 1 Str - 6 Str, CSA
  • MPN: HT-8
  • UPC: 0783669461220
  • PPN: ILC-HT-8

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$3.84/ EA

Specifications

Voltage

Voltage Rating
35 kV

Dimensions

Height BX (IN)
8.25
Length (mm)
38.1
Width (mm)
18.2118
Height (mm)45.3644
Width BX (IN)4.6875

Testing Standards

CSA File Number
AP-5465
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Barrel Marking
Hard
ILSCOs Die Index NumberO

Material and Finish

Conductor Material
Aluminum, Copper
MaterialAluminum

Conductor Ranges

Conductor Range ACSR (Secondary, tap, load)
1/0 ACSR - 3 ACSR
Conductor Range AL Solid (Secondary, tap, load)
1/0 Sol - 6 Sol
Conductor Range AL Stranded (Secondary, tap, load)
1 Str - 6 Str
Conductor Range CU Solid (Secondary, tap, load)
1/0 Sol - 6 Sol
Conductor Range CU Stranded (Secondary, tap, load)
1 Str - 6 Str
Conductor Range ACSR (primary, run, main, line)2 ACSR - 6 ACSR
Conductor Range AL Stranded (Primary, run, main, line)2/0 Str - 2 Str
Conductor Range CU Solid (Primary, run, main, line)3/0 Sol - 1 Sol
Conductor Range CU Stranded (Primary, run, main, line)2/0 Str - 2 Str
Conductor Range AL Solid (Primary, run, main, line)3/0 Sol - 1 Sol

Additional Technical Specifications

Conductor Type
Solid, Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-1
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedYes
UPC Code78366946122

Specifications

Height
1.786 in | 45.3644 mm
Weight
0.084 lbs
Length1.5 in | 38.1 mm
Width0.717 in | 18.2118 mm

Color

Color
Silver

Environment and Temperature

Temperature Rating
90°C
