Homac FXL 33-175 AL BUS CONN 2HOLE NEMA 6OUTL
- MPN: FXL 33-175
- UPC: 783786727445
- PPN: T-B-FXL 33-175
- UNSPSC: 39121443
CAD
$1362.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

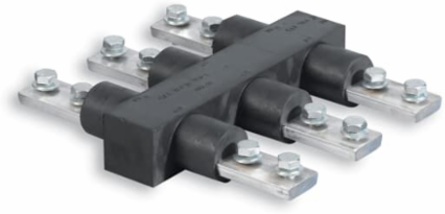

Aluminum Flood Seal Connector with EPDM Rubber Coating on main body, 12-1/4 inch High x 2-1/4 inch thick x 10-1/2 inch Long. Total Outlets 6, 3 on each side.
Specifications
Additional Information
| Application | High Conductivity Aluminum Connector |
|---|---|
| Color | Black |
| Effective Date | 20080619 |
| Material | Aluminum Connector, EPDM Rubber Insulation |
| Product Name | ELECTRICAL CONNECTOR <1000V |
| Size | 10-1/2 inch long |
| Brand / Label | Homac |
|---|---|
| Connection Type | Mechanical |
| Insulation Material | EPDM Rubber |
| Number of Conductors | 6 |
| Product Type | Flood Seal Bus Connector 175 Series |
| Special Functions | Rubber Insulation Ensures a Watertight Connection. Outlets Equipped with 1/2-13 UNC Hex-Head Screws with Captive Belleville Washers to Accept Two-Hole NEMA Aluminum or Copper Compression Lugs. All Connectors are 100 Percent Hi-Pot tested at 4000 Volts for 60 seconds. |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4663 >> Electrical underground bus connector |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
