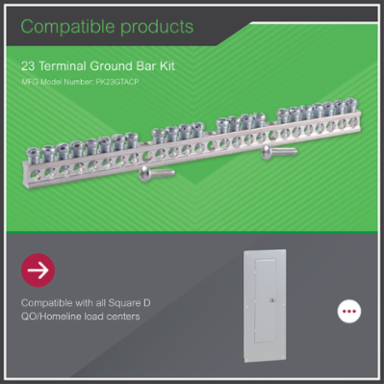

Square D PK23GTA Loadcentre Equipment Ground Bar Assembly, 23 Connectors, 206 mm Length
- MPN: PK23GTA
- UPC: 785901026433
- PPN: SCH-PK23GTA
CAD
$42.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
QO® Circuit Breaker Loadcentres, PK23GTA, from Square D® are Underwriters Laboratories (UL) Listed and CSA certified panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.
Features
- The PK23GTA is a premium equipment ground bar kit belonging to the Square D branch-circuit protection range. Rather than serving as an active power-distribution block, this hardware accessory is engineered as a centralized, low-resistance termination point for all branch-circuit equipment grounding conductors inside residential, commercial, and light industrial electrical panels.
- The bar features 23 individual terminal screw connectors arranged in a clean, space-efficient linear row. This 23-terminal configuration allows residential wiremen and panel builders to logically organize, track, and terminate numerous green or bare grounding wires, maintaining an uncluttered gutter area that speeds up municipal and provincial code compliance checks.
- The mechanical landing blocks feature dual-material certification, allowing the tight retention of both copper and aluminum grounding conductors. Each terminal port can securely accept 14 AWG to 4 AWG copper wire. For aluminum conductors, it anchors 12 AWG to 4 AWG wire.
- The package arrives complete with the structural grounding bar, two dedicated self-tapping mounting screws, and an official self-adhesive equipment grounding terminal identification label. To prevent wire loose-joints and accommodate standard conductor thermal cycles under load, the terminal screws must be driven to a factory-certified tightening torque specification of 20 to 35 lb-in (depending on the specific wire gauge used).
Documentation & Downloads
Specifications
Additional
- Number of Connectors
- 23
- Wire Size
- AWG 14...AWG 4 copper, AWG 12...AWG 4 aluminium
- Maximum Length of Segment
- 3.15 in (80 mm)
- Depth
- 0.312 in (7.92 mm)
- Warranty
- 18 months
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
Tightening TorqueMounting screw 30 lb.in, AWG 14...AWG 10 copper 20 lb.in, AWG 12...AWG 10 aluminium 20 lb.in, AWG 6...AWG 4 35 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12 copper 25 lb.in, AWG 12...AWG 10 aluminium 25 lb.in

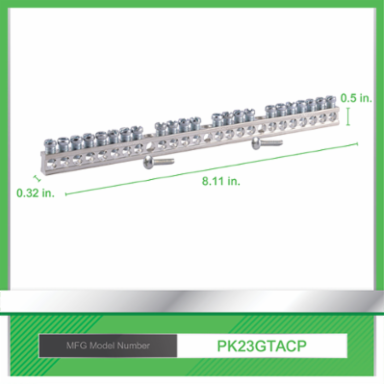

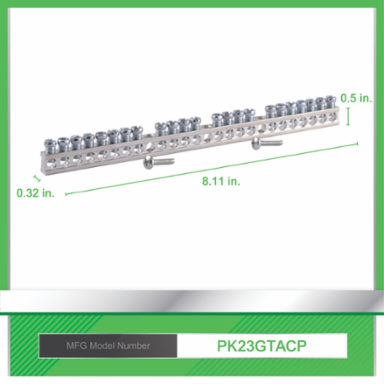

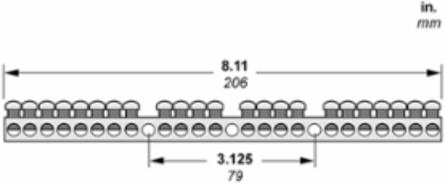

Bar Length8.11 in (206 mm)
Height0.437 in (11.10 mm)
Device MountingDirect mounting back of enclosure
RoHS ComplianceCompliant, Exemption Yes
Reach ComplianceFree of Substances of Very High Concern above threshold
Country of OriginUS
