Schneider Electric PK9GTA Loadcentre Equipment Ground Bar Assembly with 9 Connectors, 96 mm Length

MPN: PK9GTA
UPC: 785901026396
PPN: SCH-PK9GTA
UNSPSC: 39121613

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$27.75

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

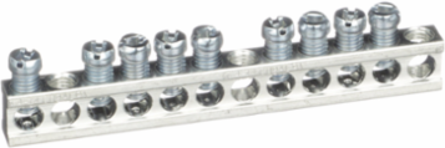

By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 9 number of circuits which accepts (1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum.

Features

his authentic Square D by Schneider Electric ground bar kit is specifically engineered for QO and Homeline load centers, ensuring a perfect mechanical and electrical fit. By providing a dedicated, low-resistance path to ground, it eliminates the dangerous "floating ground" scenarios that can lead to electrical shocks and equipment failure, keeping your installation fully compliant with NEC requirements.
Equipped with 9 individual terminal ports, this kit allows you to neatly organize and secure multiple grounding conductors within a single enclosure. This high-density design prevents overcrowded wire gutters and messy "double-lugged" connections, making it significantly easier for electrical inspectors to verify your work and for you to manage future circuit expansions.
Designed to accommodate a wide range of wire sizes, the terminals securely grip conductors from #14 to #4 AWG (Copper) or #12 to #4 AWG (Aluminum). This flexibility makes the PK9GTA ideal for everything from standard 15A lighting circuits to heavy-duty 50A sub-panel feeds, providing a versatile solution for both residential and light commercial projects.
The kit includes two pre-treated, self-tapping mounting screws that allow for rapid installation into the pre-drilled mounting holes of your Schneider load center. This "plug-and-play" compatibility saves valuable time on the job site and ensures a high-torque, vibration-resistant bond between the bar and the panel chassis for permanent electrical continuity.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

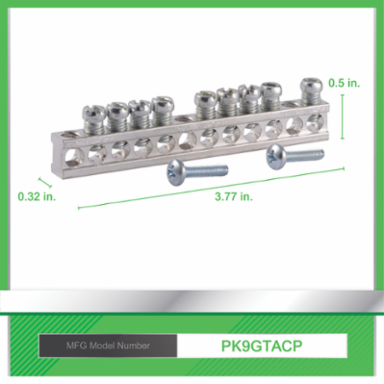

Depth	0.312 in

Physical Attributes

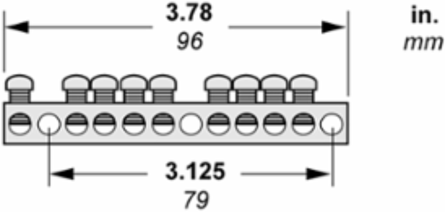

Bar Length	96 mm

Complementary Attributes

Maximum Length Of Segment	80 mm

Important Information Attributes

Persona Type Ids	EU, EUA, LC, OM, SC
Awg Gauge	14 AWG...10 AWG copper12 AWG...10 AWG aluminium8 AWG aluminium/copper, 6 AWG...4 AWG aluminium/copper, 14 AWG...12 AWG
Local Publishable Date	2026-09-28
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Number Of Connectors	9
Product Or Component Type	bar
Range Of Product	QO
Sustainable Packaging	No
Height Nominal	.437 in
Customs Code	8536904000

Persona Type Names	End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	2 screw
Returnability	Yes
Tightening Torque	20 lb.in, 14 AWG...10 AWG, copper20 lb.in, 12 AWG...10 AWG, aluminium35 lb.in, 6 AWG...4 AWG
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
