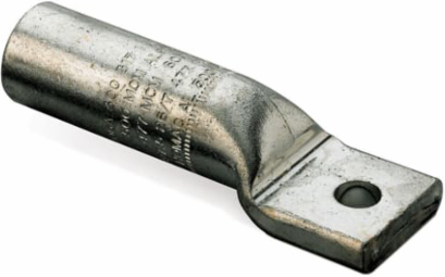

Blackburn AL 750-58 TN Tin-Plated Aluminum Compression Lug 750 kcmil 5/8 Inch Bolt 6-3/8 Inch Long
- MPN: AL 750-58 TN
- UPC: 783786694143
- PPN: T-B-AL 750-58 TN
- UNSPSC: 39121409
CAD
$172.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin-Plated Aluminum Compression Lug, One-Hole NEMA Pad, 750 kcmil AL9CU UL Listed using Intalling Dies 140H, 301, 342, 1 1/2. 700 kcmil, 636(26/7) ACSR. 5/8 inch Bolt size. Length 6-3/8 inch. Pad 1-3/4 inch wide x 1-7/8 inch long x 35/64 inch thick. (1) 11/16 inch Diameter Hole. Oxide Inhibitor. Red Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug One Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
- Wire Size
- 750 kcmil
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
Size6-3/8 inch long x 1-3/4 inch wide
StandardsANSI C119.4
Temperature Range90 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
