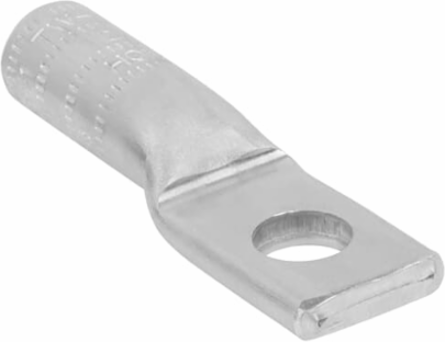

Blackburn AL 1000-48 TN Tin-Plated Aluminum Compression Lug 1000 KCMIL, 1/2 Inch Bolt Hole, 7-15/16 Inch Long
- MPN: AL 1000-48 TN
- UPC: 783786693177
- PPN: T-B-AL 1000-48 TN
- UNSPSC: 39121409
CAD
$170.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin-Plated Aluminum Compression Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 1000 KCMIL AL9CU, 954 kcmil, ACSR 795 (26/7) 954 (45/7), 1/2 inch Bolt hole. 7-15/16 inch Long. Pad 2-39/64 inch wide x 1-7/8 inch long x 39/64 inch thick, Barrel 4-5/8 inch long with Outside Diameter of 1-27/32 inch. Oxide Inhibitor, Brown Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- 7-15/16 inch long x 2-7/16 inch wide
- Standards
- ANSI C119.4
- Temperature Range
- 90 °C
Brand / LabelHomac
Effective Date20080619
Mounting TypeBolt Size 1/2 in
Product TypeCompression Lug One Hole
Special FunctionsDual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
Surface FinishingTin Plated
Wire Size1000 kcmil
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
