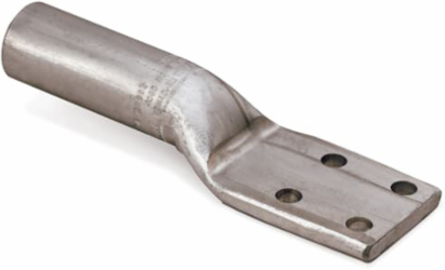

Blackburn AL 500-4 N Aluminum Compression Lug 500 kcmil, 7-5/8 Inch Length, 4 Hole NEMA
Blackburn AL 500-4 N Aluminum Compression Lug 500 kcmil, 7-5/8 Inch Length, 4 Hole NEMA
- MPN: AL 500-4 N
- UPC: 783786693900
- PPN: T-B-AL 500-4 N
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$285.32/ EA
Description
Aluminum Compression Lug, 477-500 kcmil, 600 Compact AL-CU ACSR 397.5 (26/7) and 477 (18/1), Installing Dies 106A, 300, 317, 1 5/16, 14A, 15A. Bolt 1/2 inch, Four Hole NEMA Pad, Nominal Length 7-5/8 inches, Barrel 3-3/4 inch, Pad 5/8 inch thick, 3 inches wide x 3 inch long minimum with (4) 9/16 inch Diameter holes on 1-3/4 inch Centers. Pad welded to Barrel. Oxide Inhibitor. Pink Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Four Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Wire Size
- 500 kcmil
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
SizeNominal Length 7.625 inches, Barrel 3.750 inch, Pad .625 inch thick, 3 inches wide.
StandardsANSI C119.4
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
