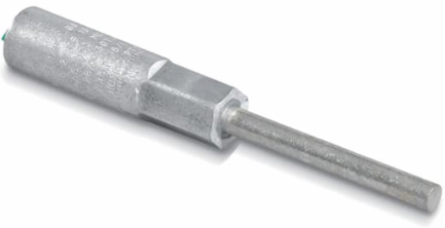

Blackburn PTB 400-6 Aluminum Compression Pin Terminal 6 Inch, Connects Aluminum/ACSR to Copper
- MPN: PTB 400-6
- UPC: 783786741878
- PPN: T-B-PTB 400-6
- UNSPSC: 39121409
CAD
$117.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Compression Pin Terminals - PT Series, Conductor Size Aluminum - 397.7 and 400 Stranded, 336.4 (26/7), 397.5 (18/1) ACSR, Installing Dies 96, 472, 705, 1-1/8-1, Solid Copper pin 15/32, Length 6 Inches.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
Additional Information
| Application | Connect Aluminum and ACSR to Copper-Alloy Equipment Clamps, Elimanating Cold-Flow Problems of Aluminum Conductor in Copper Clamps. |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Name | ELECTRICAL TERMINAL <1000V |
| Size | 6 inch pin |
| Surface Finishing | Bare, Pin Tin-Plated. |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Material | Aluminum, Tin-Plated Copper Pin |
| Product Type | Pin Terminal |
| Special Functions | Oxide Inhibitor and Metal Sealant Prevent Oxidatin and Protect Pin/Body from Moisture |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
