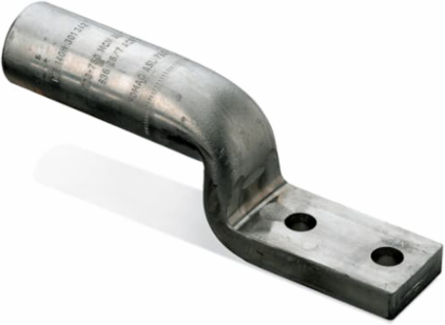

Blackburn ASL 500-258 NTN Aluminum Compression Stacking Lug 2 Hole 500 kcmil, 7-3/8 Inch Length
- MPN: ASL 500-258 NTN
- UPC: 783786696628
- PPN: T-B-ASL 500-258 NTN
- UNSPSC: 39121409
CAD
$120.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin-Plated Aluminum Compression Stacking Lug for Aluminum and Copper Terminations, Two-Hole NEMA Pad, 500 kcmil AL9CU - UL listed, 477 kcmil, Compact 600 kcmil, ACSR 397.5 (26/7) and 477 (18/1), installing dies 106A, 300, 317, 1 5/16, 15A. Length 7-3/8 inch. Pad 1-3/4 inch wide x 3 inch long x 15/32 inch thick. (2) 11/16 inch holes on 1-3/4 inch centers. Barrel 2-15/16 inch long x 1-5/16 inch outside diameter. Oxide Inhibitor. Pink Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- Length 7.375 inches
- Standards
- ANSI C119.4
- Wire Size
- 500 kcmil
Brand / LabelHomac
Effective Date20080619
Mounting TypeBolt Size 5/8 in
Product TypeCompression Lug Two Hole Stacking
Special FunctionsDual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.
Surface FinishingTin-Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
