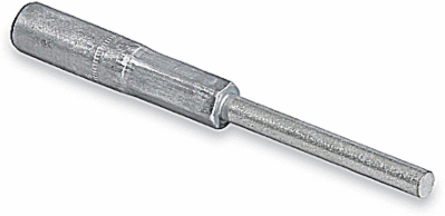

Blackburn Q 5 U 6 Aluminum Compression Pin Terminal for #4 Solid Wire, 2 Inch Length, 200 Count
- MPN: Q 5 U 6
- UPC: 783786744787
- PPN: T-B-Q 5 U 6
CAD
$26.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Compression Pin Terminals - Q5 Series, conductor size Aluminum 4 Solid, 5 & 6, 6 , installing dies 1/2,163,TQ,6A, solid Copper Pin 4 (.204), length (P) 2 inch.
Specifications
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 6x6x3.5 |
| Outer Quantity | 200 |
|---|---|
| Weight Uom | 0.07 lbs. Each |
North American Specifications (UNSPSC)
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| Brand Name | Blackburn |
| Special Features | Eliminates cold-flow problems of Aluminum conductor in Copper clamps. Oxide Inhibitor and Metal Sealant Prevent Oxidation and Protect Pin/Body from Moisture Intrusion. |
| Connection | Crimp / Compression |
| Material | Aluminum and Copper with Tin-Plated Pin |
| IGCC | 4603 Electrical terminals |
|---|---|
| Type | Compression Pin Terminal |
| Application | Connect Aluminum and ACSR to Copper-Alloy Equipment Clamps. |
| Wire Size | Aluminum Solid #4, Stranded #5 and #6, ACSR #6 |
