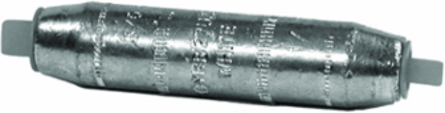

Burndy YRB34U28 Aluminum Compression Reducing Splice Tubing 500 kcmil, 4/0, 600V-35KV, Pink
- MPN: YRB34U28
- UPC: 781810739938
- PPN: BUR-252105
CAD
$128.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

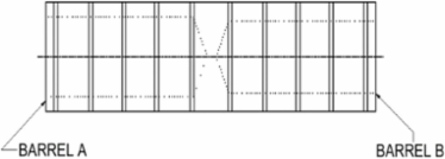

Al Compression reducing splice tubing, 500 kcmil (.813 Dia.) 37 Str(Barrel A Cu&Al),4/0 (.528 Dia.) 19 Str(Barrel B Cu&Al), 600V-35KV, Pink,300 index
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V - 35 kV |
|---|---|
| Temperature Rating | 194 F |
| Length Overall | 5.12 in (130 mm) |
| Dimension B Length | 2.11 in (2-1/8 in) |
| Plating | Tin - Electro Plated |
| Connector Type | Reducer |
| Color | Pink |
| RoHS Compliance | CM |
| Material | Aluminum |
|---|---|
| Conductor Size Range | 500 kcmil, 4/0 |
| Strip Length | 2-3/16 in |
| Outside Diameter | 1.31 in |
| Plated | Yes |
| Barrel Style | Chamfered |
| UL Listed | Yes |
