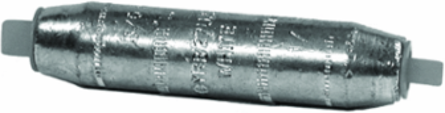

Burndy YRB34U31 Al-Cu Compression Reducing Splice Tubing, 500 kcmil to 350 kcmil, 600V-35KV, Pink
- MPN: YRB34U31
- UPC: 781810739990
- PPN: BUR-252370
CAD
$138.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al-Cu Compression reducing splice tubing, 500 kcmil(Barral A), 350 kcmil(Barral B), 600V-35KV, Tin plated, Pink, 300 Index.
Features
- Features: HYREDUCER Type YRB Reducer Butt Splice Is Designed To Splice Two Different Conductor Sizes And Is UL Listed For Aluminum To Copper And Aluminum To Aluminum Applications, Constant Outside Diameters, Electro Tin-Plated: Minimizes Installation Dies And Provides A Smooth Profile For Easy Taping, Provides Durable Long Lasting Corrosion Resistance, Factory Prefilled With BURNDYs PENETROX Oxide Inhibiting Compound: Contains Homogeneously Suspended Conductive Metallic Particles Which Penetrate Oxides Between Conductor Strands And Forms An Air Tight Connection, Solid Center Barrier: Provides Center Stop For Correct Cable Insertion And Aids The Thorough Penetration Of PENETROX Oxide Inhibiting Compound Between Conductor Strands, Connectors Are Clearly Marked With Catalog Number, Wire Size, And Color-Coded Die Index: Provides Clear, Easy To Use Information To Lower Installed Costs, Each Barrel End Has A Plastic End Cap: Keeps The Connector Barrels Free Of Foreign Materials, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750 Tool, U34ART Die, (4), Y46 Tool, U34ART Die With PUADP-1 Adapter, (4), Conductor Type: Run: Commercial Stranded Aluminum, Tap: Commercial Stranded Aluminum, Commercial Stranded Copper, Wire Strip Length: 2-5/8 IN, Die Index: 936 Element A, Color Code: Pink
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 600V - 35 kV
- Temperature Rating
- 194 F
- Connector Type
- Reducer
- Die Index
- 300
- Length B
- 2-1/8 in (2.11 in)
- Strip Length
- 2-3/16 in
- Conductor Size B (Aluminum & Copper)
- 350 kcmil
- Plated
- Yes
- Standards
- UL 486A-486B
- RoHS Compliance
- CM
- Application
- Splicing, Aluminum to Copper and Aluminum to Aluminum
KVA Rating35 kV
TypeYRB, Compression
Number of Crimps Required4

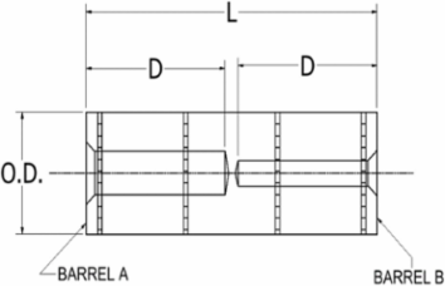

Length Overall5.12 in
Outside Diameter1.31 in
Conductor Size A (Aluminum & Copper)500 kcmil
MaterialAluminum
Plating TypeTin - Electro Plated
UL ListedYes
ColorPink
