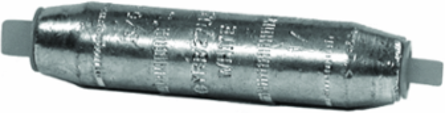

Burndy YRB31U28 Al-Cu Compression Reducing Splice Tubing 350 KCMIL, 4/0 AWG, Tin Plated, 35 kV
- MPN: YRB31U28
- UPC: 781810739679
- PPN: BUR-252365
CAD
$95.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al-Cu Compression reducing splice tubing, 350KCMIL(Barrel A), 4/0STR(Barrel B), 600V-35KV, Tin plated, Brown, 299 Index.
Features
- Features: Al-Cu Compression reducing splice tubing, Tin plated, Brown, 299 Index
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V - 35 kV |
|---|---|
| Temperature Rating | 194 C |

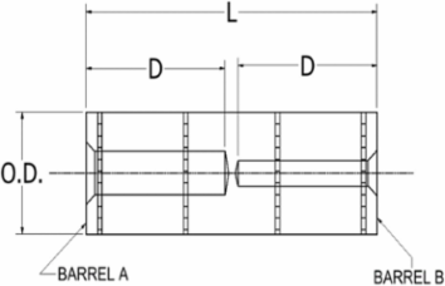

| Length B | 1.73 in |
| Outside Diameter | 1.11 in |
| Conductor Aluminum Size A | 350 kcmil |
| Conductor Copper Size A | 350 kcmil |
| Material | Aluminum |
| Plating Type | Tin - Electro Plated |
| Connector Type | Reducer |
| Die Index | 299 |
| Color | Brown |
| RoHS Compliance | CM |
| Rating KVA | 35 kV |
|---|---|
| Length Overall | 4.21 in |
| Strip Length | 1-13/16 in |
| Number of Crimps Required | 2 |
| Conductor Aluminum Size B | 4/0 AWG |
| Conductor Copper Size B | 4/0 AWG |
| Plated | Yes |
| Barrel Style | Chamfered |
| Application | Reducer |
| Type | YRB, Compression |
| Standards | UL468A-468B |
| UL Listed | Yes |
