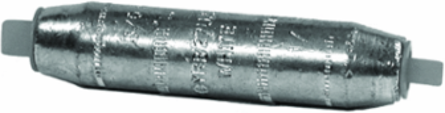

Burndy YRB2U4 Aluminum Compression Reducing Splice Tubing, 600V-35KV, 15/16 Inch Strip Length
- MPN: YRB2U4
- UPC: 781810738931
- PPN: BUR-252350
CAD
$25.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Electro tin plated reducer; UL Listed;RatingKVA 35 KV
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V - 35 kV |
|---|---|
| Temperature Rating | 194 F |

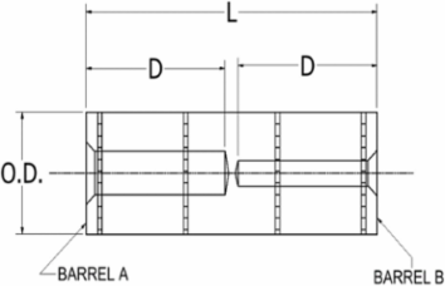

| Dimension - Length Overall | 2.00 in. (51 mm) |
| Dimension - B Length | 0.88 in. |
| Conductor - AL Str Size | 2 AWG - 1 AWG; 4 AWG |
| Plating Type | Tin - Electro Plated |
| Physical Attribute - Number of Crimps Required | 1 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
| Certification - UL Recognized | No |
| Certification - ETL | No |
| Rating - KVA | 35 kV |
|---|---|
| Dimension - Strip Length | 15/16 in. |
| Dimension - Outside Diameter | 0.65 in. |
| Conductor - Copper Str Size | 2 AWG - 1 AWG; 4 AWG - 3 AWG |
| Material | Aluminum, Electro Tin Plated |
| Connector Type | Reducer |
| Color Code | Tan |
| Standards - Industry Standards Met | UL468A-468B |
| Certification - cULus | No |
| Certification - CSA Approved | No |
| Die Index | 296 |
