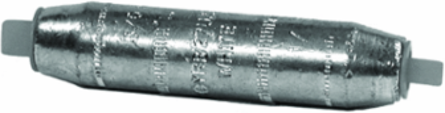

Burndy YRB27U25 Aluminum Compression Reducing Splice 3/0 AWG to 1/0 AWG, 600V-35KV, Chamfered
- MPN: YRB27U25
- UPC: 781810739211
- PPN: BUR-252357
CAD
$114.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al Compression reducing splice tubing, 3/0 str(Barrel A),1/0 str(Barrel B), 600V-35KV,White, 298 index.
Features
- Features: HYREDUCER Type YRB Reducer Butt Splice Is Designed To Splice Two Different Conductor Sizes And Is UL Listed For Aluminum To Copper And Aluminum To Aluminum Applications, Constant Outside Diameters, Electro Tin-Plated: Minimizes Installation Dies And Provides A Smooth Profile For Easy Taping, Provides Durable Long Lasting Corrosion Resistance, Factory Prefilled With BURNDYs PENETROX Oxide Inhibiting Compound: Contains Homogeneously Suspended Conductive Metallic Particles Which Penetrate Oxides Between Conductor Strands And Forms An Air Tight Connection, Solid Center Barrier: Provides Center Stop For Correct Cable Insertion And Aids The Thorough Penetration Of PENETROX Oxide Inhibiting Compound Between Conductor Strands, Connectors Are Clearly Marked With Catalog Number, Wire Size, And Color-Coded Die Index: Provides Clear, Easy To Use Information To Lower Installed Costs, Each Barrel End Has A Plastic End Cap: Keeps The Connector Barrels Free Of Foreign Materials, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750 Tool, U28ART Die, (2), Y46 Tool, U28ART Die With PUADP-1 Adapter, (2), Conductor Type: Run: Commercial Stranded Aluminum, Tap: Commercial Stranded Aluminum, Commercial Stranded Copper, Color Code: White, Wire Strip Length: 1-5/8 IN, Die Index: 298 Element A
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 600V - 35 kV |
|---|---|
| Temperature Rating | 194 F |
| Conductor Size B | 1/0 AWG |
| Connector Type | Reducer |

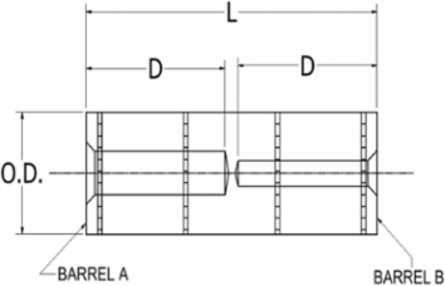

| Dimension - Outside Diameter | 0.85 in |
| Dimension - Strip Length | 1-7/16 in |
| Plated | Yes |
| Number of Crimps | 2 |
| Barrel Style | Chamfered |
| UL Listed | Yes |
| Color | White |
| Rating - KVA | 35 kV |
|---|---|
| Conductor Size A | 3/0 AWG |
| Type | YRB, Compression |
| Dimension - Length Overall | 3.31 in (84 mm) |
| Dimension - B Length | 1.36 in (1-3/8 in) |
| Material | Aluminum |
| Plating Type | Tin - Electro Plated |
| Die Index | 298 |
| Industry Standards | UL468A-468B |
| RoHS Compliance | CM |
| Application | For Splicing, Aluminum To Copper And Aluminum To Aluminum |
