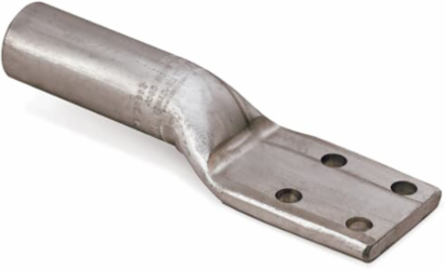

Blackburn AL 1590-4 N Aluminum Compression Lug, 13-1/2 Inch Long x 3 Inch Wide, Dual Rated
- MPN: AL 1590-4 N
- UPC: 783786049677
- PPN: T-B-AL 1590-4 N
- UNSPSC: 39121409
CAD
$190.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Four Hole NEMA Lug, 1590 kcmil AA, 1272 (45/7) ACSR, Installing Dies 728, 38AH, 189. Length 13-1/2 inch. Pad 3 inch wide x 3-5/8 inch long x 3/4 inch thick. (4) 9/16 inch Diameter Holes on 1-3/4 inch Centers. Barrel 8-7/16 inch long x 2-1/4 inch Outside Diameter. Oxide Inhibitor. Yellow Cap. Dual Rated for Aluminum and Copper Conductors
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Four Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Wire Size
- 1590 kcmil1272 (45/7) ACSR AWG
Brand / LabelHomac
Effective Date20130321
Product NameELECTRICAL CONNECTOR,>1000V
Size13-1/2 inch long x 3 inch wide
StandardsANSI C119.4
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
