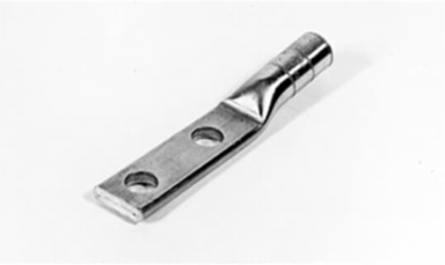

Blackburn AL 1000 CPTNTN Aluminum Compression Lug, 1000 kcmil, 3-5/8 Inch Pad
Blackburn AL 1000 CPTNTN Aluminum Compression Lug, 1000 kcmil, 3-5/8 Inch Pad
- MPN: AL 1000 CPTNTN
- UPC: 783786693047
- PPN: T-B-AL 1000 CPTNTN
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$210.88/ EA
Description
Tin Plated, Aluminum Compression Lug, 1000 Compact, Bolt hole size 9/16 inch diameter, Two hole NEMA pad, Pad 3-5/8 inch long x 2-7/16 inch wide x 41/64 inch thick, Holes center to center 1-3/4 inches. Bore 4-1/4 inch Deep. Dies 161, 302, 292, 319, 1 3/4. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
- Wire Size
- 1000 kcmil
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
SizePad 3.625 inch long x 2.443 inch wide x .639 inch thick, Holes center to center 1.750 inches. Barrell 4.312 inches
StandardsANSI C119.4
Temperature Range90 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
