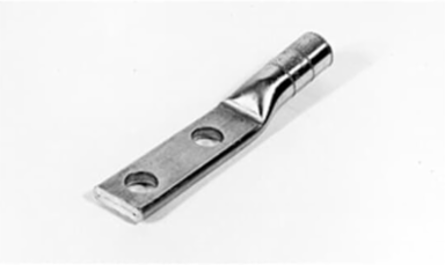

Blackburn AL 750 N 608 GSH Aluminum Compression Lug 700 kcmil, 8-1/4 Inch Length, Two Hole Pad
- MPN: AL 750 N 608 GSH
- UPC: 783786694105
- PPN: T-B-AL 750 N 608 GSH
- UNSPSC: 39121409
CAD
$216.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Compression Lug, 700-750 kcmil AL-CU, 636(26/7) ACSR, 400 MM2, Dies 125H, 608, 786, 936. Bolt size 1/2 inch, Length 8-1/4 inch. Two Hole NEMA Pad, Pad 1-3/4 inch wide x 3-53/64 inch long x 15/32 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 3-3/8 inch long x 1-1/2 inch Outside Diameter. Oxide Inhibitor. Yellow Cap. Includes Galvanized Steel Hardware (2) Bolts 1/2-13 x 2 Full Thread, (2) 1/2-13 Nuts, (4) 1/2 inch Flat Washer, and (2) Stainless Steel Belleville 1/2 inch Washers.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Wire Size
- 700 kcmil
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
Size8-1/4 inch long x 1-3/4 inch wide
StandardsANSI C119.4
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
