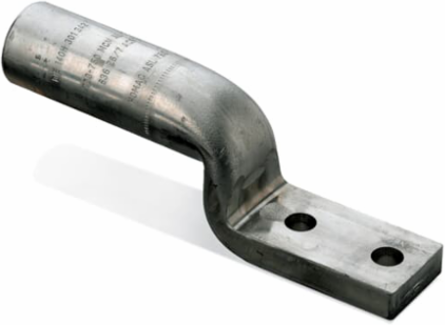

Blackburn ASL 1000 N Aluminum Compression Lug 1000 kcmil, 8-9/16 x 2-7/8 Inch, Dual-Rated
- MPN: ASL 1000 N
- UPC: 783786399079
- PPN: T-B-ASL 1000 N
- UNSPSC: 39121409
CAD
$136.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Two-Hole NEMAL Stacking Lug - Conductor Range 954 to 1000 kcmil AL-CU, ACSR 795 (26/7) 954 (45/7), Installing Dies 161, 292, 302, 319, 1 3/4. Length 9-1/2 inch. Pad 2-7/16 inch wide x 3-1/8 inch long x 5/8 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 4-5/8 inch long x 1-27/32 inch Outside Diameter. Oxide Inhibitor. Brown Cap.
Specifications
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 8-9/16 x 2-7/8 inch wide
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20120411
Product TypeCompression Lug Two Hole Stacking
Special FunctionsMade from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Wire Size1000 kcmil
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
