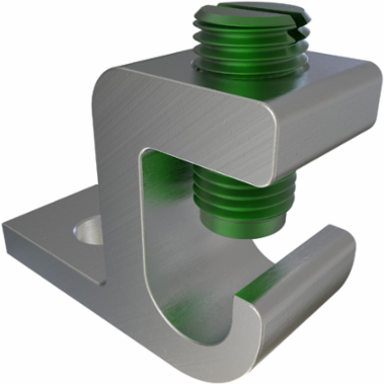

ILSCO GBL-1/0-B2 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 1/0-14, Tin Plated, Bag of 2
- MPN: GBL-1/0-B2
- UPC: 783669960112
- PPN: ILC-GBL-1/0-B2
- UNSPSC: 39121408
CAD
$39.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Lay-in Ground Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, UL 467 Listed, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 1 ports/wireways, Drive Type Main Slotted, bag quantity 2,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366996011
- Dual Rated
- TRUE
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Drive Type Main
- Slotted
- Wire Binding Torque
- 1/0 - 6 AWG = 45,8 AWG = 40,10 - 14 AWG = 35
- Length (mm)
- 213.36
- Width (mm)
- 76.2
- Height (mm)
- 16.002
- Material
- Aluminum
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Nickel Strick, Zinc, Green Dye
- UL / CULUS Specification
- UL 467 Listed
- Connection
- Mechanical
- Bag Quantity
- 2
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Size CU (Primary, run, main, line)10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Wire Binding Screw Size (mm)965.2
Length (IN)8.4
Width (IN)3
Height (IN)0.63
Weight (LB)0.130588432
Conductor MaterialCopper,Aluminum
Wire Binding Hardware MaterialStainless steel
UL File NumberE34440
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Number of Ports / Wireways1
