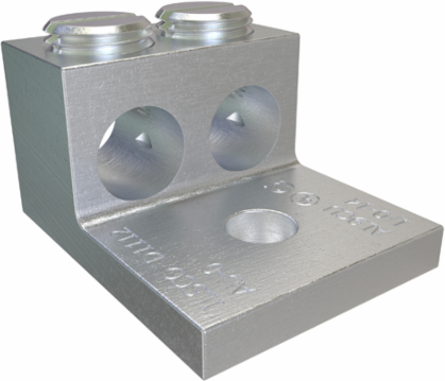

ILSCO AU-0-B2 Aluminum Mechanical Lug, Conductor Range 1/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA, Bag of 2
- MPN: AU-0-B2
- PPN: ILC-AU-0-B2
CAD
$14.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Mechanical Lug, Conductor Range 1/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA, Bag of 2
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.794 in | 20.1676 mm |
|---|---|
| Weight | 0.137 lbs |
| Length | 8.4 in | 213.36 mm |
|---|---|
| Width | 3 in | 76.2 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Drive Type Main | Slotted |
|---|---|
| Height (mm) | 20.1676 |
| Weight BX (LB) | 3.748 |
| Width (mm) | 76.2 |
| Height BX (IN) | 3.75 |
|---|---|
| Length (mm) | 213.36 |
| Width BX (IN) | 6.375 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 467 Listed, UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 2 |
| Contains DE-OX® | No |
|---|---|
| Number of Conductors | 2 |
| Number of Poles | 1 |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Tin |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 2 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 25 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366900067 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|---|
| Wire Binding Screw Size | 7/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 10 - 14 AWG = 35, 2/0 - 2 AWG = 50, 4 - 6 AWG = 45, 8 AWG = 40 |
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
