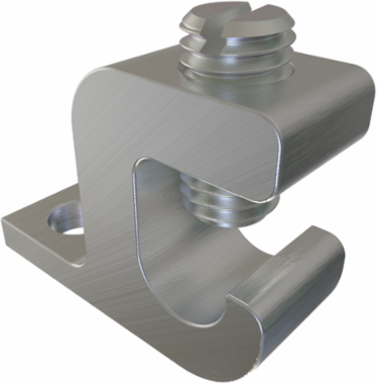

ILSCO GBL-4-B2 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 4-14, Tin Plated, UL, Bag of 2
- MPN: GBL-4-B2
- UPC: 783669960068
- PPN: ILC-GBL-4-B2
- UNSPSC: 39121408
CAD
$11.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Lay-in Ground Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10 in, UL 467 Listed, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, bag quantity 2,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366996006
- Dual Rated
- TRUE
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Size AL (Primary, run, main, line)
- 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
- Drive Type Main
- Slotted
- Wire Binding Screw Size
- 4-Jan
- Length (IN)
- 8.4
- Width (IN)
- 3
- Height (IN)
- 0.385
- Weight (LB)
- 0.042170952
- Mounting Hole Diameter (mm)
- 5.5372
- Clamping Hardware Material
- Steel
- Conductor Material
- Copper,Aluminum
- Wire Binding Hardware Material
- Steel
- CSA File Number
- LR-29601
- UL Control Number
- 667P
- UL / CULUS Specification
- UL 467 Listed,UL 486A/B Listed
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Conductors
- 1
- Number of Ports / Wireways
- 1
- Bag Quantity
- 2
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Conductor Size CU (Primary, run, main, line)10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Clamping Bolt Size1/4/2028
Number of Wire Binding Screws per Port1
Wire Binding Torque10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
Length (mm)213.36
Width (mm)76.2
Height (mm)9.779
Mounting Bolt/Stud Size (mm)254
MaterialAluminum
Clamping Hardware FinishZinc Clear Trivalent Chromate
Connector FinishTin
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
CSA StandardC22.2 No. 65-03
UL File NumberE6207
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor TypeSolid,Stranded
Mounting Kit Hardware Part #GBL-MH1,GBL-MHU
Number of Mounting Holes1
Number of Ports Main1
