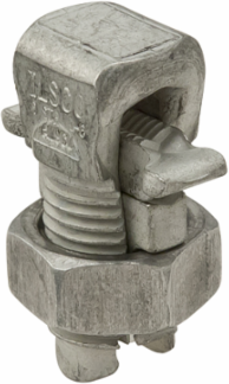

ILSCO AK-6 Aluminum Split Bolt, Main Range 6-10, Tap Range 6-10, Tin Plated, UL, CSA
- MPN: AK-6
- UPC: 783669008302
- PPN: ILC-AK-6
CAD
$19.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Split Bolt, Main Range 6-10, Tap Range 6-10, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.56 in |
|---|---|
| Weight | 0.0375 lbs |
| Length | 1.38 in |
|---|---|
| Width | 0.75 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Drive Size Main | 9/16, 3/4 |
|---|---|
| Height BX (IN) | 3.75 |
| Width BX (IN) | 6 |
| Drive Type Main | External Hex |
|---|---|
| Weight BX (LB) | 4.675 |
Testing Standards
| CSA File Number | 72632 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 188, C22.2 No. 65 |
|---|---|
| UL Control Number | 670B |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Poles | 1 |
| Number of Conductors | 1 |
|---|
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Material | Aluminum |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Conductor Range AL Solid (Secondary, tap, load) | 6 Sol - 10 Sol |
|---|---|
| Conductor Range AL Stranded (Secondary, tap, load) | 6 Str - 10 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 6 Sol - 10 Sol |
| Conductor Range CU Stranded (Secondary, tap, load) | 6 Str - 10 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 6 Str - 10 Str |
|---|---|
| Conductor Range CU Solid (Primary, run, main, line) | 6 Sol - 10 Sol |
| Conductor Range CU Stranded (Primary, run, main, line) | 6 Str - 10 Str |
| Conductor Range AL Solid (Primary, run, main, line) | 6 Sol - 10 Sol |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-4 |
| Carton Quantity Description | STD PACK QTY 100 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366900830 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|
| Wire Binding Torque | 165 |
|---|
Color
| Color | Silver |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
