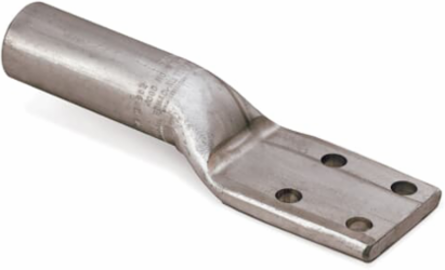

Blackburn AL 2500-4 N Aluminum Compression Lug 15-3/8 Inch for 2500 kcmil AL-CU Terminations
- MPN: AL 2500-4 N
- UPC: 783786971657
- PPN: T-B-AL 2500-4 N
- UNSPSC: 39121409
CAD
$349.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum Four-Hole NEMA Lugs, concentric 2500 kcmil AL-CU, ACSR 2156-2167, installing die 214. Length 15-3/8 inch. Pad 3.559 inch Wide x 4 inch long x 45/64 inch thick. (4) 9/16 inch diameter holes on 1-3/4 inch spacing. Barrel 9-1/8 inch with Outside Diameter 2-9/32 inch. Oxide Inhibitor. Orange Cap.
Specifications
Additional Information
- Application
- General purpose lugs for Aluminum and Copper terminations.
- Connection Type
- Compression
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Length 15-3/8 inches
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20100427
Product TypeCompression Lug Four Hole
Special FunctionsDual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
Wire Size2500 kcmil2156 to 2167 ACSRcil km
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
