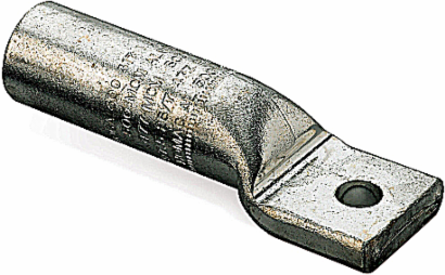

Blackburn AL 3/0-48 Aluminum One-Hole NEMA Lugs, 3/0 Conductor Size, 3-7/16 Inch Length
- MPN: AL 3/0-48
- UPC: 783786693528
- PPN: T-B-AL 3/0-48
CAD
$26.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum One-Hole NEMA Lugs, concentric 3/0, bolt size 1/2, installing dies 737,467
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 3/0 |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Aluminum One-Hole NEMA Lugs |
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Size | Length 3-7/16 inches |
| Material | Aluminum |
Packaging
| Outer Quantity | 100 |
|---|---|
| Weight Uom | 0.09 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
