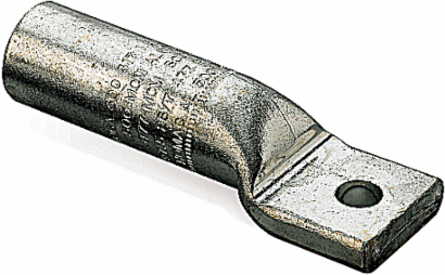

Blackburn AL 1/0-48 Aluminum One-Hole NEMA Lugs, 1/0 Conductor Size, Length 3-1/8 Inch
Blackburn AL 1/0-48 Aluminum One-Hole NEMA Lugs, 1/0 Conductor Size, Length 3-1/8 Inch
- MPN: AL 1/0-48
- PPN: T-B-AL 1/0-48
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$13.45/ EA
Description
Aluminum One-Hole NEMA Lugs, concentric 1/0, bolt size 1/2, installing dies TU,52,BG,243,5/8
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
Packaging
- Outer Quantity
- 100
- Weight Uom
- 0.06 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification.
- Standard
- ANSI C119.4
- Conductor Range
- 1/0
IGCC4668 Wire or cable compression connector
TypeAluminum One-Hole NEMA Lugs
ApplicationGeneral purpose lugs for Aluminum and Copper terminations.
SizeLength 3-1/8 inches
MaterialAluminum
Downloads
