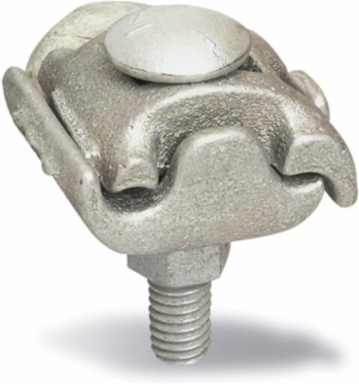

Blackburn PAA4009-3 PAA400903 PARGRV CLAMP W/HEX HD BLT

PAA400903 PARGRV CLAMP W/HEX HD BLT

Blackburn PAA4009-3 PAA400903 PARGRV CLAMP W/HEX HD BLT

MPN: PAA4009-3
UPC: 783786862252
PPN: T-B-PAA4009-3
UNSPSC: 39121449

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$130.16/ EA

Loading add to cart quantity...

Description

Parallel Groove Clamp, Hex Head Bolt, Contax Filled, Main 400 kcmil - 1/0 Aluminum 336 ACSR - 1/0 ACSR, 1/0 ACSR - 6 ACSR with Armor TAP 400 kcmil - 1/0 Aluminum 336 ACSR - 1/0 ACSR

Specifications

Additional Information

Application: Securing Conductors

Connection Type: Bolted

Insulation Material: None

Mounting Type: None

Product Name: ELECTRICAL CONNECTOR,<1000V

Size: Bolt Head 3/4 inch, Bolt Size 1/2 inch, Height 3-1/4 X Length 3-3/4 X Width 2-1/2 inch

Brand / LabelBlackburn

Effective Date20100122

MaterialAluminum

Number of Conductors2

Product TypeParallel-Groove Clamp

Special FunctionsHigh-Strength, Heat-Treated Cast Aluminum Alloy provides Secure Connections. Galvanized Steel Carriage Bolt, Nut and Lockwasher included. Dual-Rated for use on Aluminum, ACSR and Copper Conductors.

Ordering

Country of Origin: India (IN)

Selling Unit of Measureeach

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
