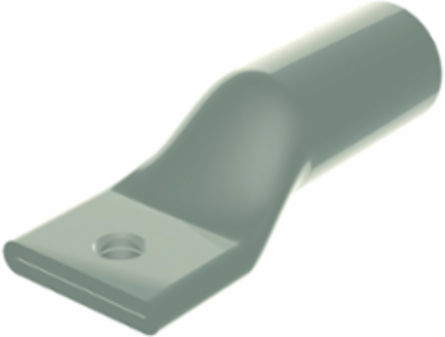

Burndy YA32A6 Aluminum Comp Terminal 1 Hole 400 kcmil 600 V-35 kV 1/2 Inch Stud
- MPN: YA32A6
- UPC: 781810101407
- PPN: BUR-534168
CAD
$116.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsul Al Comp Terminal, 1 Hole, 400 kcmil, 600 V-35 kV, 1/2" Stud, Closed bbl, Green, 472 Index, For Al & Cu Cond, Color Coded End Cap.
Features
- UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-1/4 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 1.88 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.92 in
- Dimension - Outside Diameter inch
- 1.19 in
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.26 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm125 mm
Dimension - N inch0.88 in
Dimension - Pad Width inch1.62 in
Dimension - Z inch1.00 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 400 kcmil
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 400 kcmil
Conductor - AL Str Size Range400 kcmil
Conductor - Copper Str Size400 kcmil
General
- Application
- For Aluminum & Copper Conductors
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Material
- Aluminum
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Temperature Rating
- 194
- Type
- YA-L-NT
- UPC 12 Digit
- 7818101014077
Color CodeGreen
Die Index472
Item Type3B
Physical Attribute - Number of Holes1
PlatedY
Sub BrandTERMINALS, HYLUG
Trade NameHYLUG™
UPC781810101407
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
