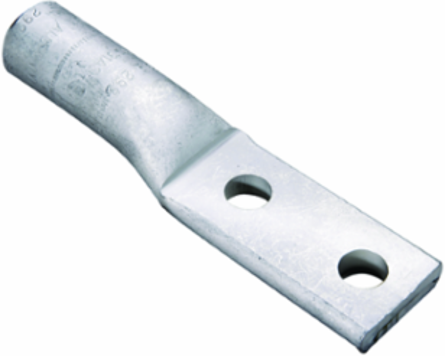

Burndy YA39AM2 Aluminum Terminal 2 Hole NEMA, 700-750 kcmil, 900 kcmil, 1/2 Inch Stud, 7.31 Inch Length
- MPN: YA39AM2
- UPC: 781810762004
- PPN: BUR-537177
CAD
$225.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsul Al Comp Terminal, 2 Hole NEMA, 700-750 kcmil(Al/Cu), 900 kcmil Compt AL, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Closed bbl, Red, 301 Index.
Features
- UL Listed 90 DEG C, 600 V - 35 KV,Tongue Angle: Straight
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-9/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.12 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 7.31 in
- Dimension - Outside Diameter inch
- 1.60 in
- Dimension - Strip Length inch
- 2 7/8
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.56 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm186 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch1.69 in
Dimension - Stud Size inch1/2
Dimension - Z inch0.74 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 700 kcmil;715 kcmil;750 kcmil
- Conductor - Copper Str Size
- 700 kcmil;750 kcmil
Conductor - AL Str Size Range700 kcmil-750 kcmil
Conductor - Copper Str Size Range700 kcmil-750 kcmil
General
- Application
- For Aluminum & Copper Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Item Type
- 3B
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Sub Brand
- TERMINALS, HYLUG
- Trade Name
- HYLUG™
- UPC
- 781810762004
Color CodeRed
Die Index301
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Temperature Rating194
TypeYA-A
UPC 12 Digit7818107620044
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
