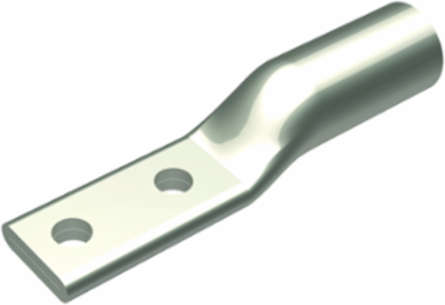

Burndy YA39A5DT Aluminum Terminal Connector, 2 Hole, 700-750 kcmil, 35 kV, 1/2 Inch Stud
- MPN: YA39A5DT
- UPC: 781810268407
- PPN: BUR-26001062
CAD
$278.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Uninsul Al Comp Terminal, Sealed, 2 Hole NEMA, 700-750 kcmil(Al/Cu), 900 kcmil Compt AL, 600 V-35 kV, 1/2" Stud, 1.75" Spacing, Closed bbl, Yellow, 936 Index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-7/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.15 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 7.07 in
- Dimension - Outside Diameter inch
- 1.46 in
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.46 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm180 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch1.62 in
Dimension - Z inch0.77 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 700 kcmil;715 kcmil;750 kcmil
- Conductor - Copper Str Size
- 700 kcmil;750 kcmil
Conductor - AL Str Size Range700 kcmil-750 kcmil
Conductor - Copper Str Size Range700 kcmil-750 kcmil
General
- Color Code
- Yellow
- Die Index
- 936
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Temperature Rating
- 194
- UPC
- 781810268407
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC 12 Digit7818102684077
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 3
