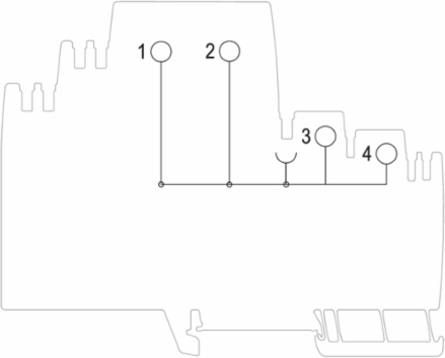

Weidmuller 2122920000 AMG PD Potential Distributor - 4 Terminals, IP20, PUSH IN Connection System
- MPN: 2122920000
- PPN: WDM-2122920000
CAD
$5.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Potential distributor
Documentation & Downloads
Specifications
General Data
| Conformal coating | No |
|---|---|
| Operating temperature | -25 °C...55 °C |
| Total current load per potential | 12 A |
| Current load per contact point | 12 A |
|---|---|
| Protection degree | IP20 |
Probability Of Failure
| MTTF | 50,000 Years |
|---|
Approvals
| Approvals | CE, CULUS, EAC, TUEV |
|---|---|
| UL File Number Search | E258476 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 125 mm |
| Depth | 96.5 mm |
| Net weight | 27.5 g |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 4.921 inch |
| Depth (inches) | 3.799 inch |
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
Output
| Connection system | PUSH IN |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Connection Data (Output)
| Conductor cross-section, AWG/kcmil , max. | 12 |
|---|---|
| Conductor cross-section, flexible , max. | 2.5 mm² |
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Connection system | PUSH IN |
| Screwdriver blade | 0.6 x 3.5 |
| Conductor cross-section, AWG/kcmil , min. | 26 |
|---|---|
| Conductor cross-section, flexible , min. | 0.14 mm² |
| Conductor cross-section, rigid , min. | 0.14 mm² |
| Number of terminals | 4 (4x +), 2 x 1.5 mm², 2 x 2.5 mm² |
Temperatures
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...55 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E258476 |
|---|
