Schneider Electric TMC2AQ2C Modicon M221 Analog Output Cartridge, 2 Current Outputs 4-20 mA, 12-Bit Resolution
- MPN: TMC2AQ2C
- PPN: SCH-TMC2AQ2C
CAD
$134.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

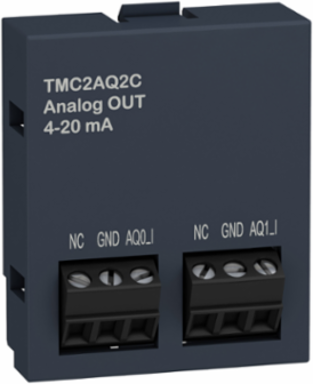

cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Japan, Mexico, United States |
|---|
| Depth | 15 mm |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m output |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cross Talk | <= 1 LSB, <= 1 LSB |
| Non-linearity | +/- 0.01 %FS, +/- 0.01 %FS |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0159796296 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 1.940308642 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs |
| Insulation | non-insulated between analogue output and internal logic |
| Load Type | resistive |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M221 |
| Returnability | Yes |
| Stabilisation Time | 40 ms |
| Total Lifecycle Carbon Footprint | 45 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 41 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 155.625 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 109 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Temperature Drift | +/- 0.02 %FS/°C, +/- 0.02 %FS/°C |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0051608642, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0001179877, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 43 kg CO2 eq., 42.9194444444 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Conversion Time | 20 ms |
| Immunity To Microbreaks | 10 ms |
| Load Impedance Ohmic | <= 500 Ohm<= 500 Ohm |
| Lsb Value | 3.91 µA 4...20 mA current |
| Product Or Component Type | analogue output cartridge |
| Repeat Accuracy | +/- 0.4 %FS+/- 0.4 %FS |
| Software Version | EIME v5.6.0.1 |
| Sustainable Packaging | No |
| Type Of Cable | twisted shielded pairs cable |
| Pep Code | ENVPEP1403017EN |
| Pep Verification Date | 2018-08-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years |
| Energy Consumption On Product Lifetime In Kwh | 87.6 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 35 mm |
| Package Weight(Lbs) | 40 g |
| Warranty (In Months) | 18 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 109 |
| Customs Code | 8538908180 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2018-08-01 |
| Type Of Verification For The Pep | Independent external review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 44.8810115679 |
| Environmental Disclosure | ENVPEP1403017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Modicon M221C |
| Pep Code | ENVPEP1403017EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | analogue output cartridge |
|---|
| Range Of Product | Modicon M221 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|
| ETIM 9 | EC001420 |
|---|
Output Attributes
| Analogue Output Number | 2 |
|---|---|
| Analogue Output Type | current 4...20 mA |
| Analogue Output Resolution | 12 bits |
|---|
