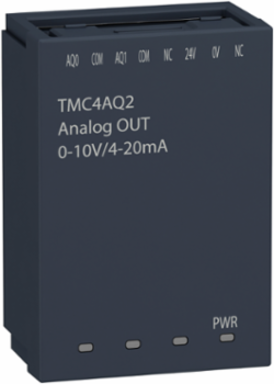

Schneider Electric TMC4AQ2 Modicon M241 Analogue Output Cartridge, 2 Outputs, 16-bit Resolution, 0.055 kg
- MPN: TMC4AQ2
- PPN: SCH-TMC4AQ2
CAD
$309.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cartridge M241 - 2 analog outputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between output and internal logic at 500V DC and no insulation between outputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for I/O cartridge on TM241C*24 . There are 2 slots for I/O cartridge on TM241C*40.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, Mexico |
|---|
| Depth | 21 mm |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Insulation | between output and internal logic 500 V DC, non-insulated between outputs |
| Lsb Value | 1 mV 0...10 V voltage, 2 µA 4...20 mA current |
| Non-linearity | +/- 0.05 %FS, +/- 0.05 %FS |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Cross Talk | 80 dB |
| Immunity To Microbreaks | 10 ms |
| Local Signalling | 1 LED (green) for PWR |
| Product Or Component Type | analogue output cartridge |
| Repeat Accuracy | +/- 0.5 %FS+/- 0.5 %FS |
| Stabilisation Time | 10 ms |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 50 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Load Impedance Ohmic | <= 500 Ohm current, <= 500 Ohm current, >= 2 kOhm voltage, >= 2 kOhm voltage<= 500 Ohm current, <= 500 Ohm current, >= 2 kOhm voltage, >= 2 kOhm voltage |
| Temperature Drift | +/- 0.006 %FS/°C, +/- 0.006 %FS/°C |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1845 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Conversion Time | 10 ms + 1 controller cycle time |
| Electrical Connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply |
| Load Type | resistive |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M241 |
| Returnability | No |
| Supply Voltage Limits | 20.4-28.8 V |
| Type Of Cable | twisted shielded pairs cable |
| Pep Code | ENVPEP1403017EN |
| Width Nominal | 34 mm |
| Package Weight(Lbs) | 74.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Modicon M241C |
| Pep Code | ENVPEP1403017EN |
General Attributes
| Product Or Component Type | analogue output cartridge |
|---|
| Range Of Product | Modicon M241 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|
| ETIM 9 | EC001420 |
|---|
Output Attributes
| Output Ripple | +/- 20 mV, +/- 20 mV |
|---|---|
| Analogue Output Resolution | 16 bits |
| Analogue Output Number | 2 |
|---|---|
| Analogue Output Type | current 4...20 mAvoltage 0...10 V |
