Schneider Electric TMC2AQ2V Modicon M221 Analogue Output Cartridge, 2 Voltage Outputs 0-10V, 12 Bit Resolution
- MPN: TMC2AQ2V
- PPN: SCH-TMC2AQ2V
- UNSPSC: 32151705
CAD
$134.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

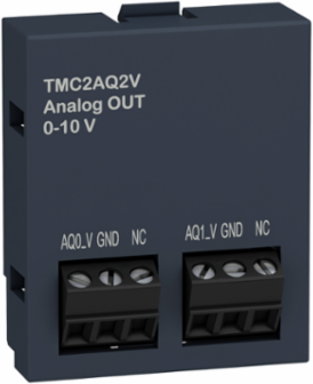

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue output cartridge provides 2 outputs with 12bit output resolution. The analogue output voltage ranges from 0V to 10V. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue output and internal logic. It is furnished with screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Features
- SD card and USB port
- 2 analog inputs and a broad choice of I/Os
- Run/stop switch and cartridge extension
- Ethernet and serial line ports
- A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Japan |
|---|---|
| Depth | 15 mm |
| Weight | 20 g |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m output |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cross Talk | <= 1 LSB, <= 1 LSB |
| Non Linearity | +/- 0.01 %FS, +/- 0.01 %FS |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0079898148 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 0.970154321 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Conversion Time | 20 ms |
| Immunity To Microbreaks | 10 ms |
| Load Impedance Ohmic | >= 2 kOhm>= 2 kOhm |
| Lsb Value | 2.44 mV 0...10 V voltage |
| Product Or Component Type | analogue output cartridge |
| Repeat Accuracy | +/- 0.4 %FS+/- 0.4 %FS |
| Software Version | EIME v5.6.0.1 |
| Sustainable Packaging | No |
| Type Of Cable | twisted shielded pairs cable |
| Database Version | 2016-11 |
| Height Nominal | 41 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Temperature Drift | +/- 0.02 %FS/°C, +/- 0.02 %FS/°C |
| Carbon Footprint Of The Distribution Phase A4 | 0.0025804321, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0000589938, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 19 kg CO2 eq., 19.2708305556 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs |
| Insulation | non-insulated between analogue output and internal logic |
| Load Type | resistive |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M221 |
| Returnability | No |
| Stabilisation Time | 40 ms |
| Total Lifecycle Carbon Footprint | 20 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 35 mm |
| Customs Code | 8538908180 |
| Functional Unit Description | to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years |
| Energy Consumption On Product Lifetime In Kwh | 39.3324 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2018-08-01 |
| Type Of Verification For The Pep | Independent external review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 20.2516141173 |
| Environmental Disclosure | ENVPEP1403017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Modicon M221C |
| Pep Code | ENVPEP1403017EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | analogue output cartridge |
|---|
| Range Of Product | Modicon M221 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|---|
| ETIM 10 | EC001420 |
| ETIM 9 | EC001420 |
|---|
Output Attributes
| Analogue Output Number | 2 |
|---|---|
| Analogue Output Type | voltage 0...10 V |
| Analogue Output Resolution | 12 bits |
|---|
