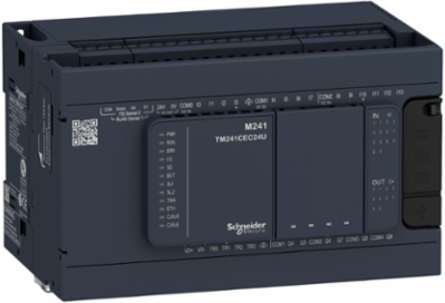

Schneider Electric TM241C24R Modicon M241 Logic Controller 24 I/O Relay 150mm x 95mm x 90mm
Schneider Electric TM241C24R Modicon M241 Logic Controller 24 I/O Relay 150mm x 95mm x 90mm
- MPN: TM241C24R
- PPN: SCH-TM241C24R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$704.91/ EA
Description
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This logic controller provides 14 discrete, 8 fast inputs, 6 relay, 4 transistor, 4 fast outputs with transistor, relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor, and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. This product enables to build application intuitively as never before due to an organised screen design. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It is a Modicon M241 controller with 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. It is an IP20 rated product. Its dimensions are 150mm (Width) x 95mm (Depth) x 90mm (Height). It weighs 0.53kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Specifications
Complementary
- Network Frequency
- 50/60 Hz
- Data Backed Up
- 128 MB built-in flash memory backup of user programs
- Input Impedance
- 4.7 kOhm input
- Height
- 90 mm
- Discrete Input Voltage
- 24 V
- Positioning Functions
- PTO 4 100 kHz)
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB
- Battery Type
- BR2032 lithium non-rechargeable 4 year(s)
- Marking
- CE
- Discrete I/O Number
- 24
- Maximum Number Of I/O Expansion Module
- 7 local || 14 remote
- Application Structure
- 4 cyclic master tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks || 8 event tasks
- Configurable Filtering Time
- 1 µs fast input
- Memory Capacity
- 64 MB system memory RAM
- Supply Voltage Limits
- 85-264 V
- Sensor Power Supply
- 24-24 V DC 400 mA supplied by the controller
- Control Signal Type
- A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)
- Surge Withstand
- 2 kV power lines (AC) common mode IEC 61000-4-5 || 2 kV relay output common mode IEC 61000-4-5 || 1 kV shielded cable common mode IEC 61000-4-5 || 1 kV power lines (AC) differential mode IEC 61000-4-5 || 1 kV relay output differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5 || 1 kV transistor output common mode IEC 61000-4-5
- Discrete Input Current
- 5 mA input
- Execution Time For 1 Kinstruction
- 0.3 ms event and periodic task || 0.7 ms other instruction
- Width
- 150 mm
- Protection Type
- short-circuit protection transistor output || short-circuit and overload protection with automatic reset transistor output || reverse polarity protection transistor output || without protection relay output
- Insulation
- between supply and internal logic 500 V AC || non-insulated between supply and ground
- Counting Input Number
- 4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz
Discrete Input Logicsink or source
Electrical Connectionremovable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Maximum Cable Distance Between Devicesunshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
Discrete Output Logicpositive logic (source)
Discrete Input Voltage TypeDC
Accuracy+/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
Clock Drift<= 60 s/month 25-25 °C
Communication Port Protocolnon isolated serial link Modbus master/slave
Backup Time2 years 25 °C
Reset Time10 ms automatic reset output || 12 s automatic reset fast output
Net Weight0.53 kg
Voltage State 0 Guaranteed<= 5 V input
Output Voltage Limits125 V DC relay output || 30 V DC transistor output || 277 V AC relay output
Voltage State 1 Guaranteed>= 15 V input
Integrated Connection Typenon isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Local SignallingPWR 1 LED green) || RUN 1 LED green) || module error (ERR) 1 LED red) || I/O error (I/O) 1 LED red) || SD card access (SD) 1 LED green) || BAT 1 LED red) || SL1 1 LED green) || SL2 1 LED green) || bus fault on TM4 (TM4) 1 LED red) || I/O state 1 LED per channel green)
Response Time50 µs turn-on, I0...I13 input
Maximum Output Frequency1 kHz transistor output || 20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode)
Realtime Clockwith
Depth95 mm
Data Storage Equipment<= 16 GB SD card optional)
Supplyserial 1)serial link supply 5 V, <200 mA
Specifications
- Discrete Output Type
- transistor || relay
- Discrete Output Number
- 6 relay || 4 transistor 4 fast output
- Discrete Output Current
- 2 A relay output Q4...Q9) || 0.1 A fast output (PTO mode) TR0...TR3) || 0.5 A transistor output TR0...TR3)
- [Us] Rated Supply Voltage
- 100...240 V AC
Range Of ProductModicon M241
Product Or Component Typelogic controller
Discrete Output Voltage5...125 V DC relay output || 5...250 V AC relay output || 24 V DC transistor output
Discrete Input Number14 , discrete input 8 fast input IEC 61131-2 Type 1
Environment
- Product Certifications
- RCM || cULus || CE || UKCA || DNV-GL || ABS || LR
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Storage Altitude
- 0-3000 m
- Pollution Degree
- 2
- Shock Resistance
- 15 gn 11 ms
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 with protective cover in place
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines) || 2 kV IEC 61000-4-4 relay output) || 1 kV IEC 61000-4-4 serial link) || 1 kV IEC 61000-4-4 input) || 1 kV IEC 61000-4-4 transistor output)
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011 || conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15-0.5 MHz IEC 55011 || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5-300 MHz IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Immunity To Microbreaks10 ms
StandardsANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 508
Ambient Air Temperature For Operation-10-50 °C vertical installation) || -10-55 °C horizontal installation)
Vibration Resistance3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Operating Altitude0...2000 m
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307080EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1307080EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
