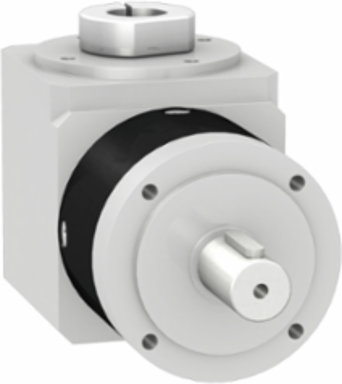

Schneider Electric GBY060012K Angular Gearbox 60mm, Straight Teeth, Reduction 12:1, 44N.m Torque
- MPN: GBY060012K
- PPN: SCH-GBY060012K
CAD
$1191.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for efficiency and precision, this angular gearbox from Schneider Electric features a compact 60mm design that seamlessly integrates into various automation and motion control applications. With straight teeth and a reduction ratio of 12:1, it offers exceptional torque handling capabilities of up to 44N.m, making it ideal for demanding operational environments. This gearbox not only enhances performance but also ensures reliable operation, providing the robustness needed for a range of industrial tasks.
Documentation & Downloads
Specifications
Additional
- Continuous Output Torque
- 44 N.m at 100 rpm 30 0C
- Maximum Radial Force
- 340 N at 100 rpm during 30000 h at 30 0C
- Efficiency
- 92 %
- Torsional Rigidity
- 2.5 N.m/arcmin
- Noise Level
- 70 dB at 1 m no-load
- Gear Box Teeth Type
- Straight teeth
- Gearbox External Diameter
- 60 mm (2.36 in)
- Shaft Moment Of Inertia
- 0.238 kg.cm9
- Housing Material
- Black anodized aluminium
- Shaft Material
- C 45
- Mounting Position
- Any position
- Mercury Free
- Yes
- RoHS Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111245EN
- Warranty
- 18 months
- Product Compatibility
- BMH 70 mm, 1; BSH 55 mm, 1; BSH 55 mm, 2; BSH 55 mm, 3; BSH 70 mm, 1; BRS3; ILE 66 mm, 1; ILE 66 mm, 2; ILA 57 mm, 1; ILA 57 mm, 2; ILS 57 mm, 1; ILS 57 mm, 2; ILS 57 mm, 3; SH3; MH3; ILM
- Device Short Name
- GBY
- Pvc Free
- Yes
Maximum Output Torque70 N.m at 100 rpm 30 0C
Maximum Axial Force450 N at 100 rpm during 30000 h at 30 0C
Reduction Ratio12:1
Maximum Torsional Backlash18 arc.min
Ambient Temperature Range-25 to 90 0C
Gearbox TypeAngular planetary
Input Diameter14.0 mm (0.55 in)
Net Weight1.9 kg
Housing ColourBlack
LubricationLubricated for life
IP Degree of ProtectionShaft output IP54
Eu RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
China RoHS RegulationProduct out of China RoHS scope
Sustainable Offer StatusGreen Premium product
Country of OriginGermany
Range CompatibilityLexium 52; Lexium SD3; Lexium ILA; Lexium 32; Lexium 62; Lexium 62 ILM; Lexium ILS; Lexium ILE
Circularity ProfileN/A
