Hubbell ATS-01049 ATS-01049 (former catalog number ATS-OO-245-46-4RPTP-36)
- MPN: ATS-01049
- UPC: 662620435633
- PPN: HBL-ATS-01049
CAD
$915.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

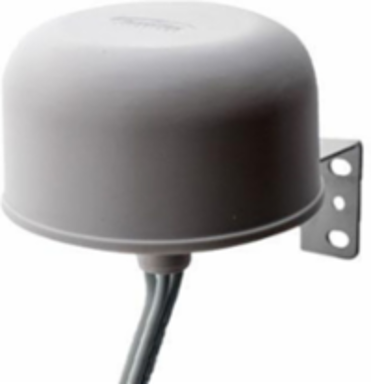

ATS-01049 (former catalog number ATS-OO-245-46-4RPTP-36). The AccelTex Solutions dual band indoor/outdoor omnidirectional antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.
Features
- Dual band omnidirectional antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes flush mount and wall/pole mount kit for versatile indoor and outdoor use
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | RG58 |
| Length | 4.7 in |
| Protection Type | DC Grounded |
| Width | 2.8 in |
| Application | Indoor Wi-Fi |
| Connector Type | RPTNC Plug |
| Impedance | 50 Ohms |
| Isolation Loss | ˃20dB |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | 11.500x29.500x1.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620435633 |
| Pallet - GTIN - Package | 70662620435632 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
| Antenna Gain | 4/6 dBi |
|---|---|
| Diameter - Pole | 2 in |
| Product Type | Omni Antenna |
| Voltage Ratio | < 2.0:1 |
| Windage | 130 mph (210 km/h) |
| Compatibility | Cisco Catalyst 9115e;Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP |
| Frequency Rating | 2.4-2.5/4.9-5.85 GHz |
| Installation Type | Threaded Bolt with Nut and Wall/Pole Mount (included) |
| Operating Temperature | -40 to 65 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 38.000 in |
| Pallet Weight | 0.000 lb. |
