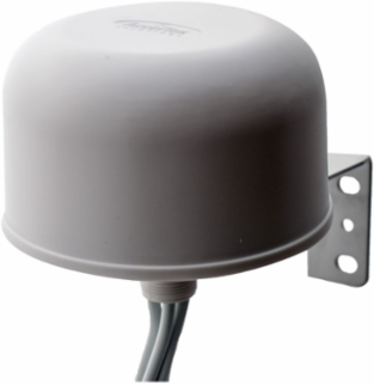

Hubbell ATS-03478 ATS-03478 (former catalog number ATS-OO-2456-466-4NP-36)
- MPN: ATS-03478
- UPC: 662620441467
- PPN: HBL-ATS-03478
CAD
$1015.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AccelTex Solutions Tri-Band 4-Element indoor/outdoor omnidirectional antenna with N-STYLE Plug connectors is a perfect complement to an enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications. *Available in black upon request. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see the Document FCC OET Labs 6 GHz guidance).
Features
- Optimized for 2.4, 5, and 6 GHz Wi-Fi operation
- Features N-Style Plug connectors for enterprise-class AP compatibility
- Includes integrated flush mount and wall/pole mount kit for versatile installations
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-200 |
| Product Type | Omni Antenna |
| Application | Indoor Wi-Fi;Outdoor Wi-Fi |
| Connector Type | N-Style Plug |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620441467 |
| Antenna Gain | 4/6/6 dBi |
|---|---|
| Height | 3.13 in |
| Width | 5.7 in |
| Compatibility | Aruba/HP AP-584;Cisco 1562e;Cisco 1562ps;Cisco 1572eac;Cisco 1572ec;Cisco CW9163E;Cisco MR76;Cisco MR86 |
| Frequency Rating | 2.4-2.48/ 5.1-5.85/ 6-7.125 GHz |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Technology | 802.11n, 802.11ac, 802.11ax |
| BOX SIZE | (in) |
