Hubbell ATS-03278 ATS-03278 (former catalog number ATS-OO-2456-466-6NP-36)
- MPN: ATS-03278
- UPC: 662620440354
- PPN: HBL-ATS-03278
CAD
$1080.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

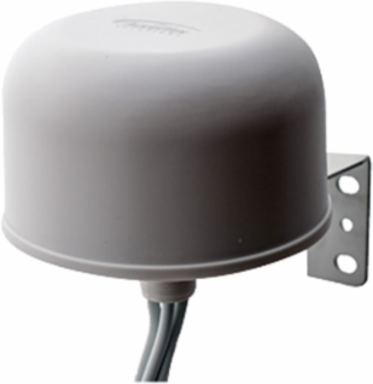

ATS-03278 (former catalog number ATS-OO-2456-466-6NP-36). The AccelTex Solutions Tri-Band, 6-Element, omnidirectional antenna with N-Style Plug connectors is a perfect complement to an enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications. *Available in black upon request. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process. See the Document FCC OET Labs 6 GHz guidance. (Insert link to here: https://apps.fcc.gov/eas/comments/GetPublishedDocument.html?id=455&tn=713821)
Features
- Aesthetically Pleasing
- Ships with integrated flush mount
- Ships with wall and pole mount kit
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-200 |
| Dimensions | 4.7 in x 4.7 in x 2.8 in |
| Length | 4.7 in |
| Width | 4.7 in |
| Compatibility | Arista O-235E;Arista O-435E;Aruba/HP AP-274;Aruba/HP AP-374;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Engenius EWS860AP;Fortinet FAP-432F;Mist AP63E |
| Frequency Rating | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Technology | 802.11ax |
| BOX SIZE | (in) |
| Antenna Gain | 4/6/6 dBi |
|---|---|
| Description - Slang | Tri-Band, 6 Element Omni Antenna with N-Style Plugs |
| Height | 2.8 in |
| Product Type | Omni Antenna |
| Application | Indoor Wi-Fi;Outdoor Wi-Fi |
| Connector Type | N-Style Plug |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620440354 |
