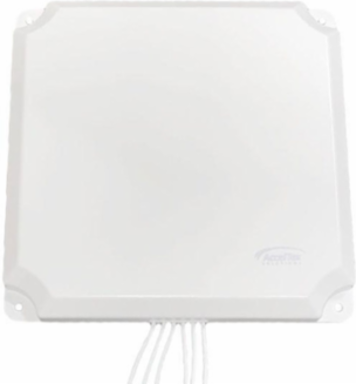

Hubbell ATS-01091 ATS-01091 (former catalog number ATS-OP-245-13-6NP-36)

MPN: ATS-01091
UPC: 662620435886
PPN: HBL-ATS-01091

$1356.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ATS-01091 (former catalog number ATS-OP-245-13-6NP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

Features

Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
Includes integrated mounting holes for flush wall installation

Specifications

Key Specifications

Country of Origin	China
Cable Type	RG402 Plen
Height	1.4 in
Product Type	Patch Antenna
Width	13.8 in
Application	Indoor Wi-Fi, Outdoor Wi-Fi
Connector Type	N-Style Plug
Impedance	50 Ohms
Isolation Loss	˃30 dB
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	13 dBi
Dimensions	13.8 in x 13.8 in x 1.4 in
Length	13.8 in
Voltage Ratio	≤1.5:1, Max 2.0
Windage	134 mph (216 km/h)
Compatibility	Arista O-235E;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Mist AP63E
Frequency Rating	2.4-2.485/5.15-5.85 GHz
Installation Type	Flush Mount to Wall or Articulating Wall/Pole Mount (included)
Operating Temperature	-40 to 65 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Indoor/Outdoor	Indoor or Outdoor
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620435886
