Hubbell ATS-01107 ATS-01107 (former catalog number ATS-OP-245-6-1DART-36)
- MPN: ATS-01107
- UPC: 662620435992
- PPN: HBL-ATS-01107
CAD
$1526.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

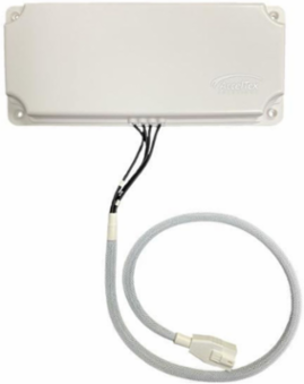

ATS-01107 (former catalog number ATS-OP-245-6-1DART-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to achieve directional coverage in your indoor or outdoor space. This antenna model includes a 36" cable with a DART connector. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Dual band patch antenna with 36" DART connector cable
- Features integrated mounting holes for flush wall installation
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | RG402 Plen |
| Height | 1.1 in |
| Product Type | Patch Antenna |
| Width | 4.8 in |
| Compatibility | Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP |
| Frequency Rating | 2.4-2.485/5.15-5.85 GHz |
| Installation Type | Flush Mount to Wall |
| Operating Temperature | -40 to 70 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620435992 |
| Pallet Length | 42.000 in |
| Pallet Width | 42.000 in |
| Antenna Gain | 6 dBi |
|---|---|
| Dimensions | 11.2 in x 4.8 in x 1.1 in |
| Length | 11.2 in |
| Voltage Ratio | < 1.5:1, Max 2.0 |
| Windage | 134 mph (216 km/h) |
| Connector Type | DART |
| Impedance | 50 Ohms |
| Isolation Loss | ˃30 dB |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | 20.000x21.500x13.500 (in) |
| Pallet Height | 43.500 in |
| Pallet Weight | 526.000 lb. |
