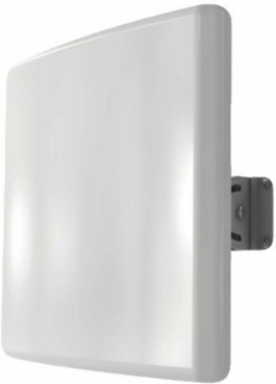

Hubbell ATS-01022 ATS-01022 (former catalog number ATS-OHDP-245-1312-6NJ-IC)
- MPN: ATS-01022
- UPC: 662620435442
- PPN: HBL-ATS-01022
CAD
$1541.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ATS-01022 (former catalog number ATS-OHDP-245-1312-6NJ-IC). The AccelTex Solutions high density dual band indoor/outdoor 6-Element patch antenna is a perfect complement to any enterprise-class AP to achieve focused, directional coverage in your indoor or outdoor space. With a narrower beamwidth than most patch antennas and both horizontal and vertical polarized antenna elements, this antenna is purpose-built to provide a very focused coverage pattern suitable for high density deployments. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated connectors and ships with our articulating wall and pole mount kit for precise antenna positioning. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- High-density dual band patch antenna with narrow beamwidth for focused coverage
- Horizontal and vertical polarization with articulating wall/pole mount kit
Specifications
Key Specifications
- Country of Origin
- China
- Diameter - Pole
- 2 in
- Height
- 1.4 in
- Product Type
- Patch Antenna
- Voltage Ratio
- < 2.0:1
- Windage
- 130 mph (210 km/h)
- Compatibility
- Arista C-230E;Arista O-235E;Aruba/HP AP-518;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Mist AP63E
- Impedance
- 50 Ohms
- Isolation Loss
- ˃20dB
- Class Code
- A62
- Harmonization Code
- 8517710000
- Sub Class Code
- A62A620
- Technology
- 802.11ac, 802.11ax, 802.11n
- BOX SIZE
- 16.750x41.250x26.000 (in)
- Pallet Height
- 47.250 in
- Pallet Weight
- 289.000 lb.
Antenna Gain13/12 dBi
Dimensions19.3 in x 19.3 in x 1.4 in
Length19.3 in
Protection TypeDC Grounded
Width19.3 in
ApplicationHigh Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Frequency Rating2.4-2.5/4.9-5.85 GHz
Installation TypeArticulating Wall/Pole Mount
Operating Temperature-40 to 65 °C
Freight Class Code15730000
Image Actual Or RepresentativeA
Indoor/OutdoorIndoor or Outdoor
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00662620435442
Pallet Length42.000 in
Pallet Width42.000 in
