ATS-03464 (former catalog number ATS-OP-2456-5-10MPC-36)
Hubbell

Hubbell ATS-03464 ATS-03464 (former catalog number ATS-OP-2456-5-10MPC-36)

  • MPN: ATS-03464
  • UPC: 662620441375
  • PPN: HBL-ATS-03464

CAD

$2424.06

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

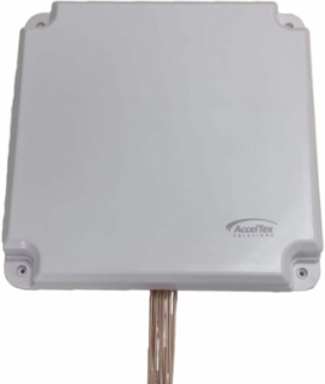

The AccelTex Solutions Tri-Band 10-Element indoor directional patch antenna with 4MPC and 6 MPC connectors is compatible with the Mist AP45E to achieve desired coverage in your indoor. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor applications. *Available in black upon request. Additional Info The Juniper/Mist AP45E-WW is approved in most countries. Please check with Juniper/Mist directly to verify regulations in your specific area (Contact Juniper/Mist). The AP45E-US is now shipping in the U.S. with the 6 GHz band disabled at launch. *Outdoor and connectorized antenna applications in the 6 GHz band in the U.S. require pending FCC updates to the equipment approvals process (see the Document FCC OET Labs 6 GHz guidance).

Features

  • Optimized for 2.4, 5, and 6 GHz Wi-Fi operation
  • Includes integrated flush mount for surface mounting and a wall/pole mount kit
  • Compatible with Mist AP45E for versatile indoor appplications

Specifications

Key Specifications

Country of Origin
China
Cable Type
ATS-100
Dimensions Metric
300 mm x 300 mm x 47 mm
HeightMetric
47 mm
Length Metric
300 mm
Width
11.81 in
Application
Indoor Wi-Fi
Frequency Rating
2.4-2.48/5.15-5.85/6-7.125 GHz
Freight Class Code
15730000
Image Actual Or Representative
A
Technology
802.11ax
BOX SIZE
(in)
Antenna Gain4/5/5 dBi
Dimensions11.81 in x 11.81 in x 1.85 in
Height1.85 in
Length11.81 in
Product TypePatch Antenna
WidthMetric300 mm
CompatibilityMist AP45E
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00662620441375
