Hubbell ATS-01092 ATS-01092 (former catalog number ATS-OP-245-13-6RPSP-36)
- MPN: ATS-01092
- UPC: 662620435893
- PPN: HBL-ATS-01092
CAD
$1356.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

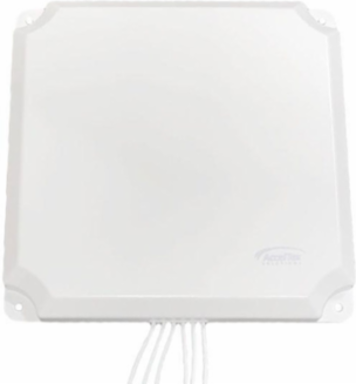

ATS-01092 (former catalog number ATS-OP-245-13-6RPSP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes integrated mounting holes for flush wall installation
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- RG402 Plen
- Height
- 1.4 in
- Product Type
- Patch Antenna
- Width
- 13.8 in
- Compatibility
- Arista C-230E;Aruba/HP AP-518;Mist AP43e
- Impedance
- 50 Ohms
- Isolation Loss
- ˃30 dB
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620435893
Antenna Gain13 dBi
Dimensions13.8 in x 13.8 in x 1.4 in
Length13.8 in
Voltage Ratio≤1.5:1, Max 2.0
Windage134 mph (216 km/h)
Frequency Rating2.4-2.485/5.15-5.85 GHz
Installation TypeFlush Mount to Wall or Articulating Wall/Pole Mount (included)
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
BOX SIZE(in)
