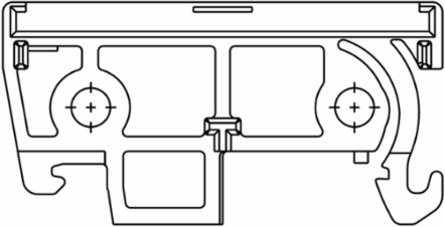

Weidmuller 8143910000 Electronics Housing End Plate 1.772 Inch Length, 0.315 Inch Width, PA 66 Material
- MPN: 8143910000
- PPN: WDM-8143910000
CAD
$5.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electronics housings, RS 45 Pebble grey, End plate, Width: 8 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- End plate
- Contact to terminal rail
- No
- Encapsulation option
- No
Cross-connectionNo
Protection degreeIP20
Approvals
- Approvals
- GOSTME25
ROHSConform
Dimensions And Weights
- Length
- 45 mm
- Width
- 8 mm
- Height
- 22.9 mm
- Net weight
- 2.215 g
Length (inches)1.772 inch
Width (inches)0.315 inch
Height (inches)0.902 inch
Material Data
- Insulating material
- PA 66
- Colour chart (similar)
- RAL 7032
- UL 94 flammability rating
- V-2
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
ColourPebble grey
Comparative Tracking Index (CTI)≥ 600
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
UNSPSC30-21-18-27
Notes
- Descriptive text technical data

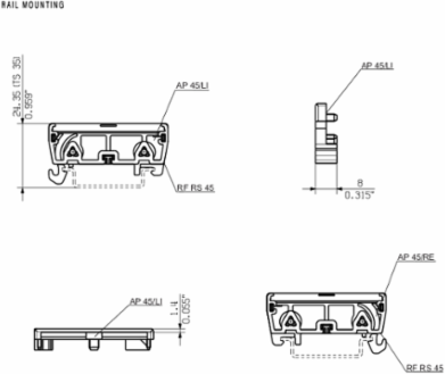

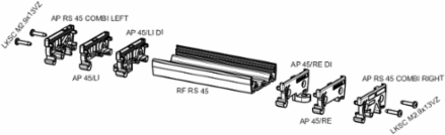

- 3 heights are available for the cover profile and the end plates:TS mounting: TS 32 = 45 mm, TS35x7.5 = 40.5 mmDirect mounting: 24 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 42 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 159 mm
