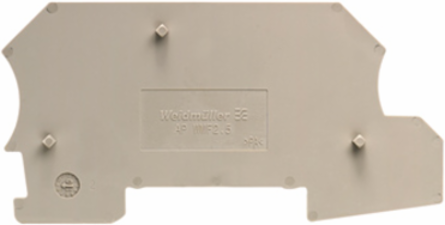

Weidmuller 1142990000 W-Series End Plate 3.435 Inch Height, 1.5 mm Width, Wemid Material
- MPN: 1142990000
- PPN: WDM-1142990000
CAD
$1.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End plate
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 1.5 mm
- Height
- 87.25 mm
- Depth
- 44.25 mm
- Net weight
- 5.78 g
Width (inches)0.059 inch
Height (inches)3.435 inch
Depth (inches)1.742 inch
Additional Technical Data
- Installation advice
- Direct mounting
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourbeige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.1
- 27-14-11-33
ETIM 7.0EC000886
eClass 10.027-14-11-33
System Specifications
- Version
- End plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
